Pioneer

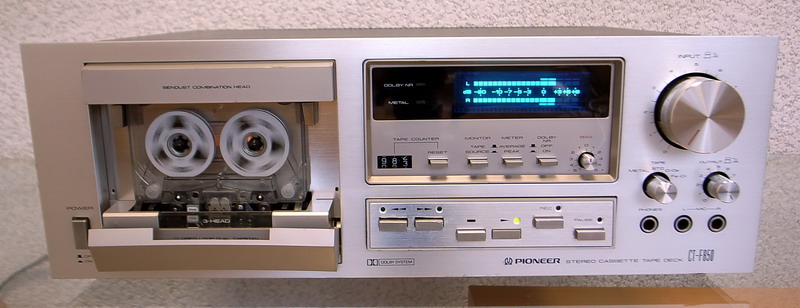

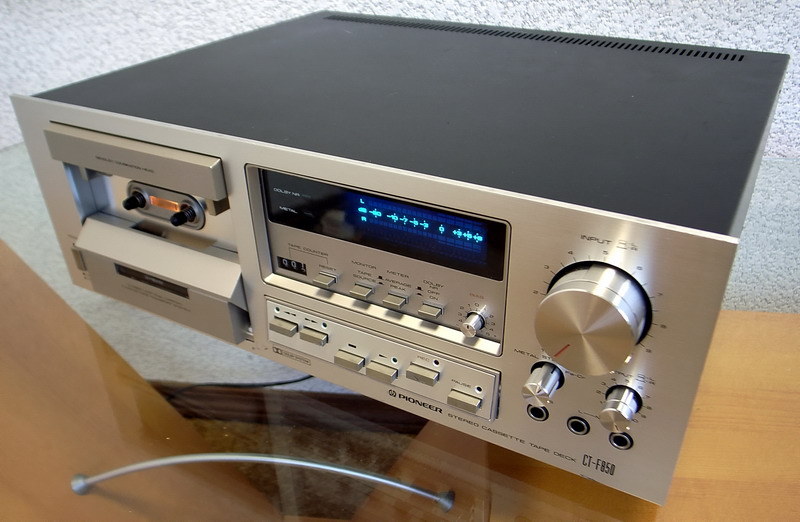

Pioneer CT- F850 blue serie
(1979-1981)

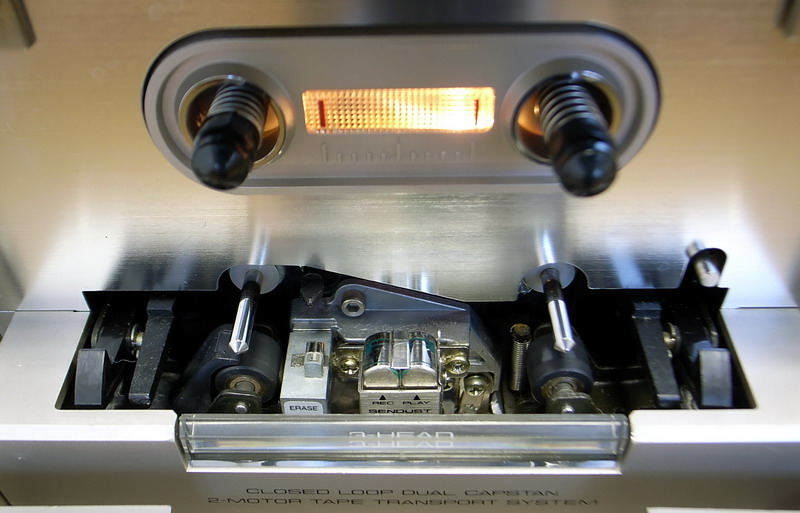

Pioneer CT-F850

Wow & flutter: 0.04% (WRMS), +/-0.14% (DIN)
Frequency (+/- 3 dB)
metal: 25 - 18.000 Hz
chrome: 25 - 17.000 Hz
ferrochrome: 25 - 17.000 Hz
normal: 25 - 15.000 Hz
S/N Ratio w/o NR: 59 dB

Reference Master Mechanism
Closed loop dual capstan
Motors: 2
Heads: 2 x Sendust Alloy Solid playback and recording heads, 1 x Ferrite erasing head

- BIAS Frequency: 80 kHz
- Dolby B
- 2 range meter (average / peak)
- Automatic Tape Loose Canceler

Dimensions: 420 x 150 x 361 mm.
Weight: 9,2 kg.

Pioneer CT-F850 Pioneer CT-F850

Pioneer CT-F850

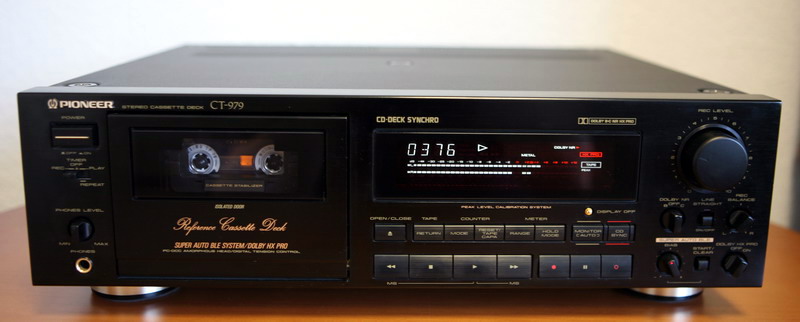

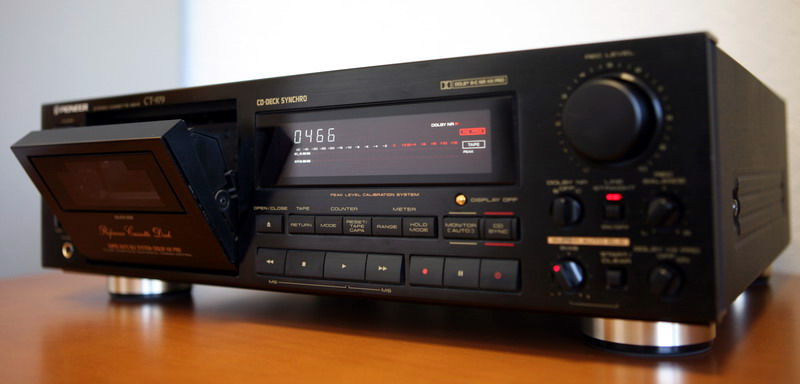

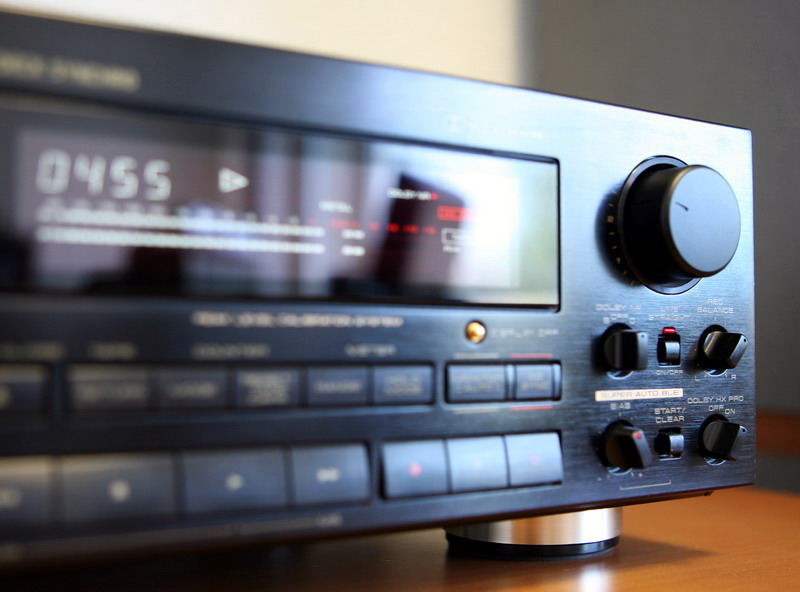

Pioneer CT- 979 reference series
(1989-1991)

Tape Decks - Gold Audio

Wow & flutter: 0.022% (WRMS), +/-0.052% (DIN)
Frequency: metal: 15 - 22.000 Hz
chrome: 15 - 21.000 Hz
normal: 15 - 21.000 Hz
S/N Ratio w/o NR: 61 dB

Reference Master Mechanism
Closed loop dual capstan
Motors: 3
Heads: 2 x Laser Amorphous playback and recording heads, 1 x Ferrite erasing head with sendust guard


- Auto BLE system
- BIAS Frequency: 210 kHz
- BIAS control manual
- Dolby HX Pro
- Dolby B/C
- MPX Filter
- 2 range meter (wide / expanded)
- Line straight
- Display off
- Music search (+/- 15 songs)
- Automatic Tape Loose Canceler
- Peak level calibration system

Dimensions: 420 x 135 x 370 mm.
Weight: 8,2 kg.

[Untitled] Tape Decks - Gold Audio

Tape Decks - Gold Audio

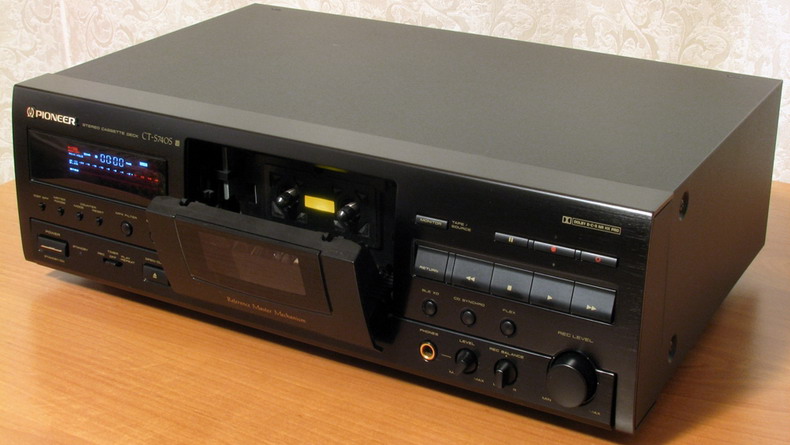

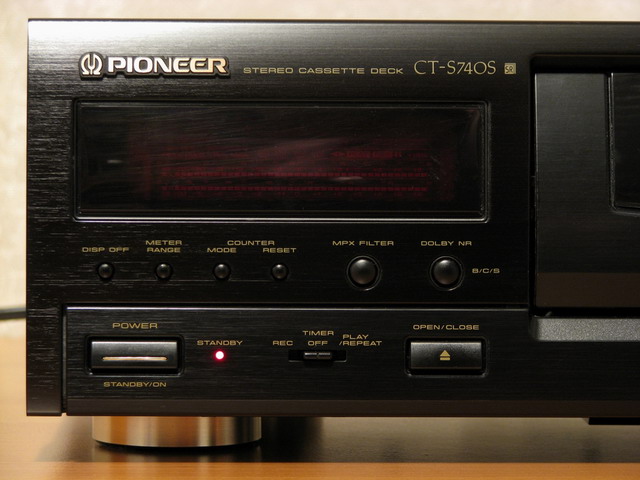

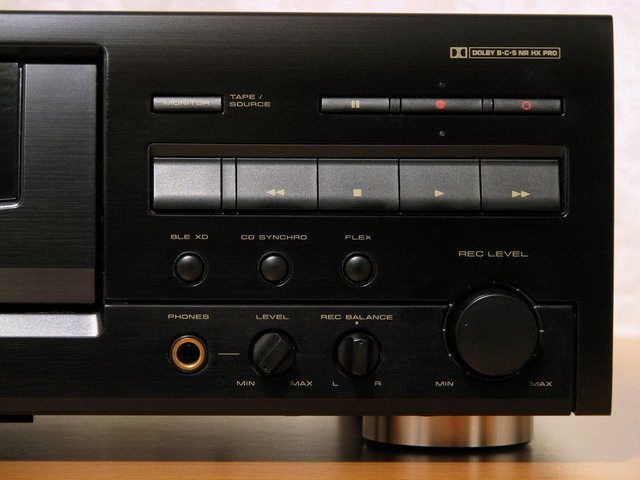

Pioneer CT-S740S
(1996 - 1998)

PIONEER CT-S740S


Wow & flutter: 0.022% (WRMS), +/-0.04% (DIN)
Frequency: metal: 10 - 25.000 Hz
chrome: 10 - 20.000 Hz
normal: 10 - 20.000 Hz
S/N Ratio w/o NR: 60 dB

Reference Master Mechanism
Closed loop dual capstan
Motors: 3
Heads: 2 x Hard Permalloy PC-OCC playback and recording heads, 1 x Ferrite erasing head

- Super Auto BLE system
- BIAS Frequency: 210 kHz
- Dolby HX Pro
- Dolby B/C/S
- MPX Filter
- 2 range meter (wide / expanded)
- Display off
- Music search (+/- 15 songs)

Dimensions: 420 x 125 x 280 mm.
Weight: 5,0 kg.

PIONEER CT-S740SPIONEER CT-S740S

PIONEER CT-S740S PIONEER CT-S740S

PIONEER CT-S740S

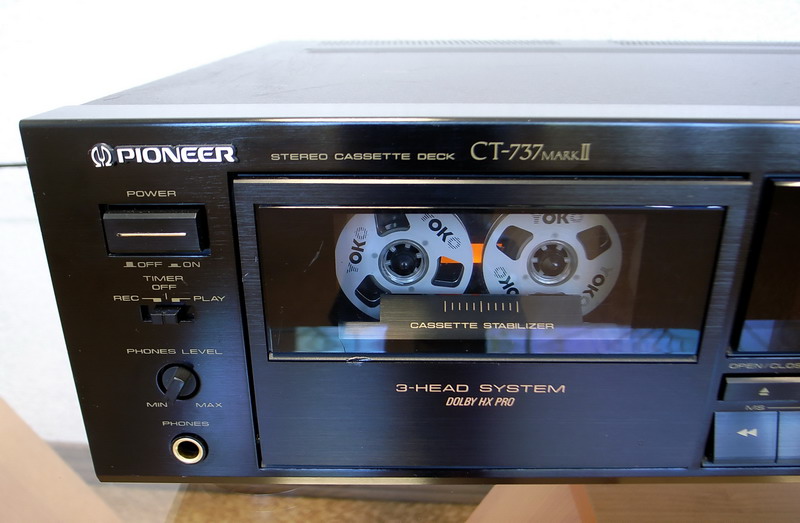

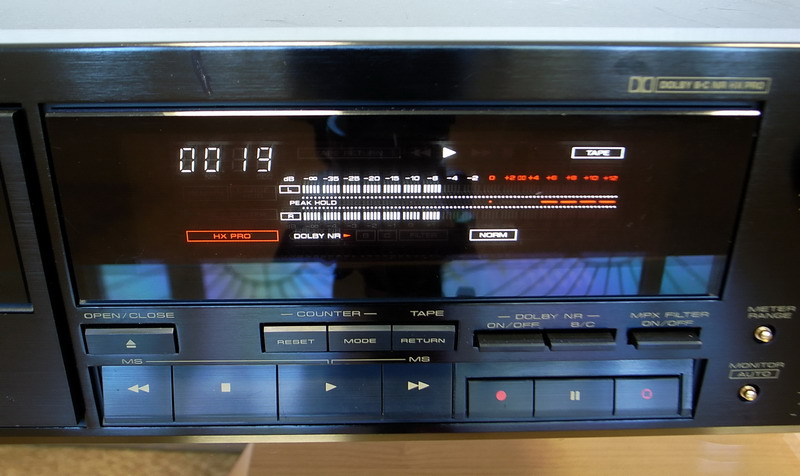

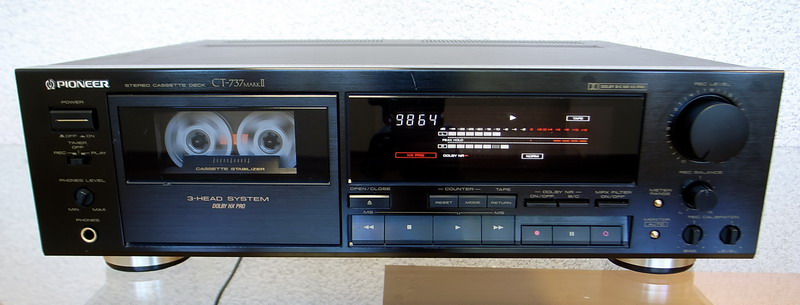

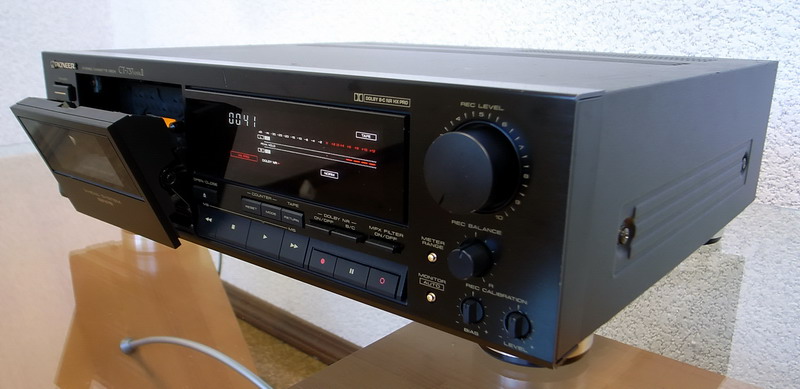

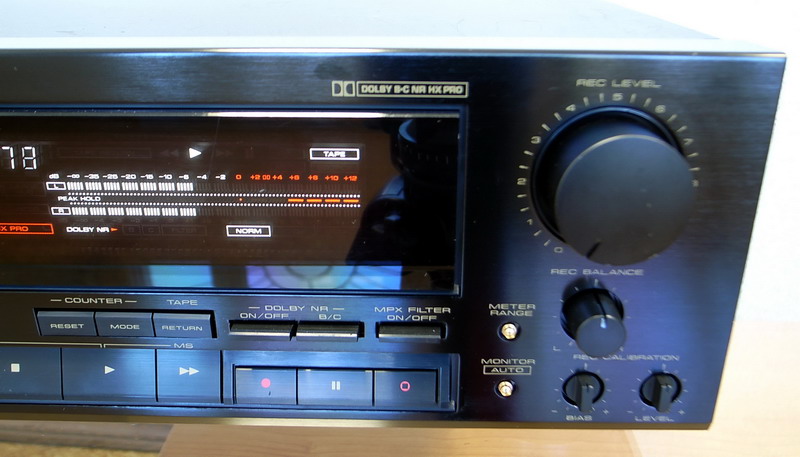

Pioneer CT- 737 Mark II
(1989-1991)

Tape Decks - Gold Audio

Wow & flutter: 0.026% (WRMS), +/-0.07% (DIN)
Frequency: metal: 15 - 22.000 Hz
chrome: 15 - 21.000 Hz
normal: 15 - 21.000 Hz
S/N Ratio w/o NR: 60 dB

Motors: 3
Heads: 2 x Hard Permalloy playback and recording heads, 1 x Ferrite erasing head

- BIAS Frequency: 210 kHz
- BIAS control manual
- REC CALIBRATION LEVEL control manual
- Dolby HX Pro
- Dolby B/C
- MPX Filter
- 2 range meter (wide / expanded)
- Music search (+/- 15 songs)
- Automatic Tape Loose Canceler
- Tape Return / Return Play

Dimensions: 420 x 134 x 372 mm.
Weight: 7,3 kg.
Tape Decks - Gold AudioTape Decks - Gold Audio

Tape Decks - Gold Audio

Tape Decks - Gold Audio

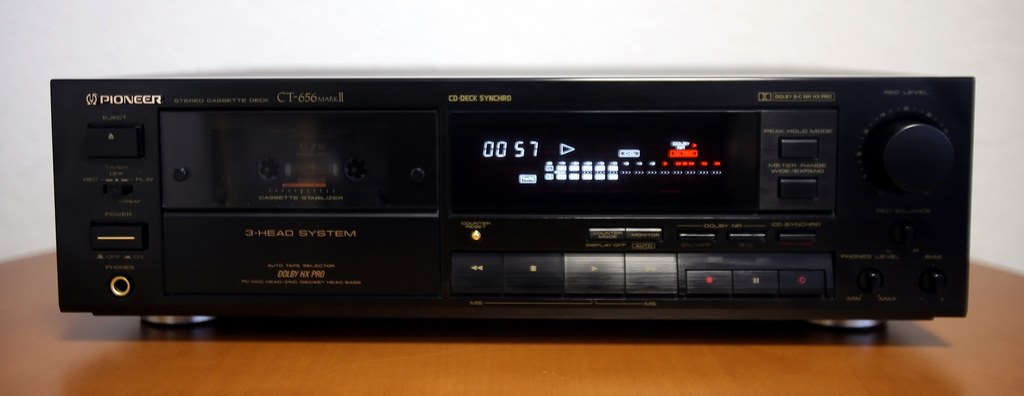

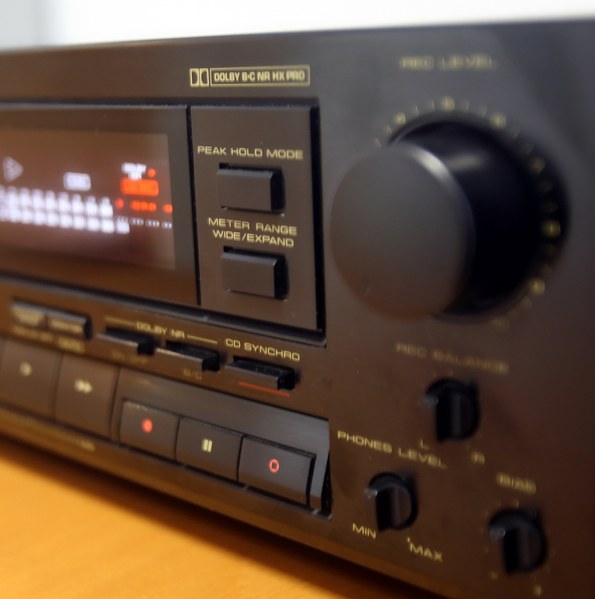

Pioneer CT-656 Mark II
(1989-1990)

Tape Decks - Gold Audio


Frequency: metal: 15 - 22.000 Hz
chrome: 15 - 21.000 Hz
normal: 15 - 21.000 Hz

Motors: 2
Heads: 2 x Hard Permalloy PC-OCC playback and recording heads, 1 x Ferrite erasing head

Zink diecast head base

- BIAS Calibration control manual
- REC Calibration control manual
- Dolby HX Pro
- Dolby B/C
- MPX Filter
- 2 range meter (wide / expanded)
- display off


Dimensions: 430 x 125 x 300 mm.
6,3 kg.

Tape Decks - Gold Audio Tape Decks - Gold Audio

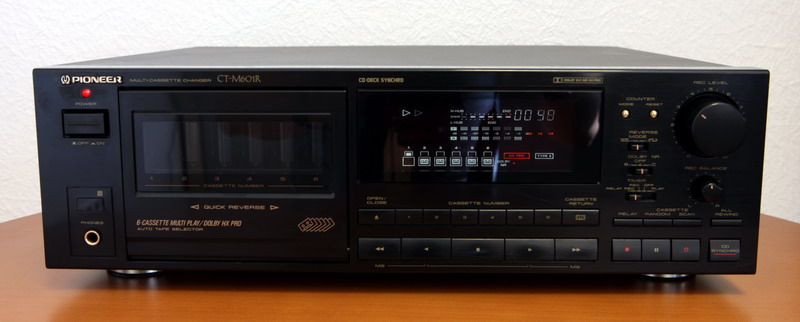

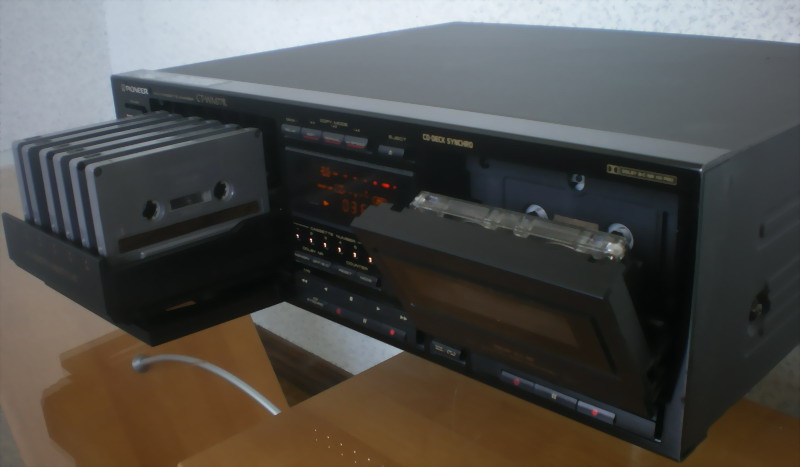

PIONEER CT-M601R
(1990 - 1992)

Tape Decks - Gold Audio

6 Cassette Multiplay Changer

Frequency: metal: 20 - 19.000 Hz (+/- 6dB)
chrome: 20 - 18.000 Hz (+/- 6dB)
normal: 20 - 17.000 Hz (+/- 6dB)
S/N Ratio w/o NR: 58 dB

Heads: 1 x Permalloy (MX) playback/recording head, 1 x Ferrite erasing head

- Dolby NR B, C
- Dolby HX Pro
- Relay, random, scan, all rewind function
- Autoreverse
- Remote control

Dimensions: 420 x 136 x 372 mm.
Weight: 7,5 kg.


Tape Decks - Gold AudioTape Decks - Gold Audio

Tape Decks - Gold Audio

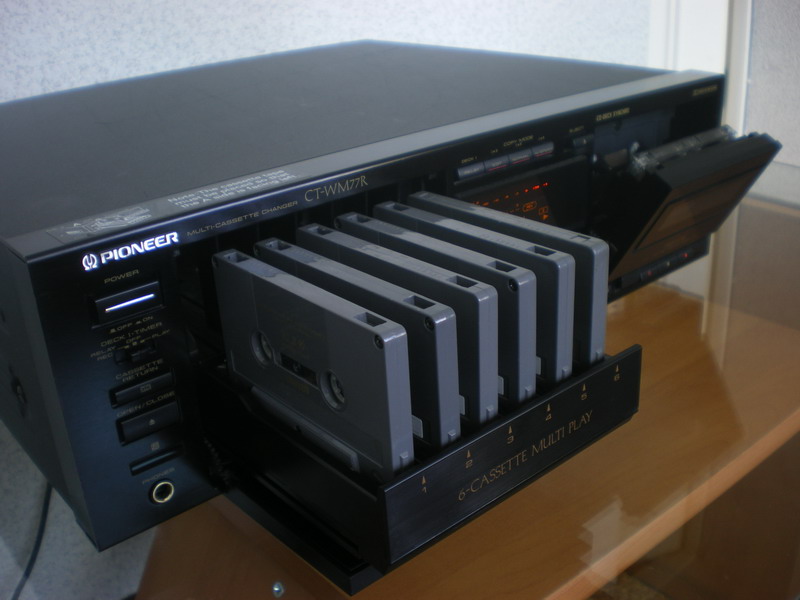

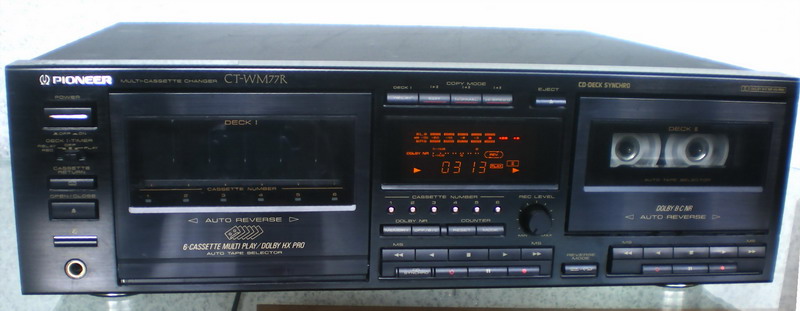

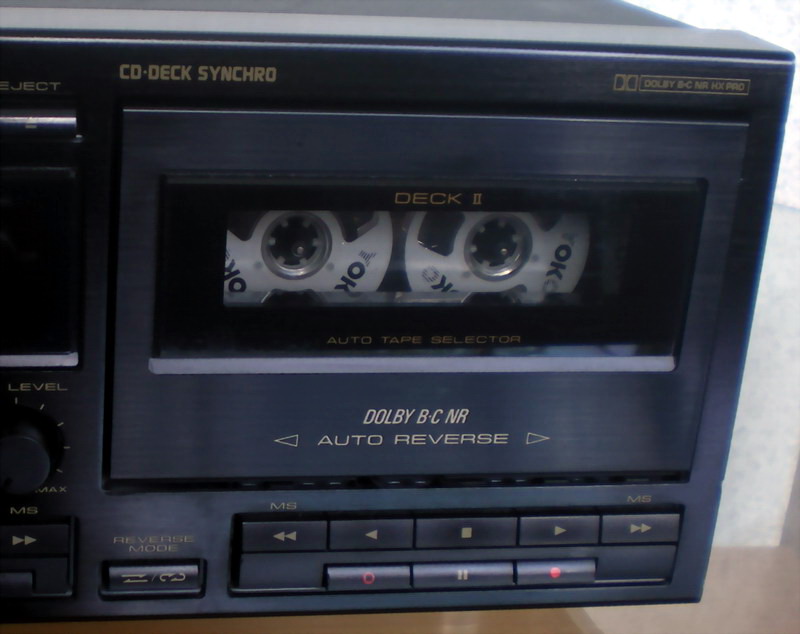

PIONEER CT-WM77R
(1993)

Pioneer CT-WM77R

Pioneer Multi-Cassette Changer CT-WM77R 6 Cassette +1 Cassette

Frequency: metal: 20 - 19.000 Hz (+/- 6dB)
chrome: 20 - 18.000 Hz (+/- 6dB)
normal: 20 - 17.000 Hz (+/- 6dB)
S/N Ratio w/o NR: 60 dB

Heads: 2 x Permalloy (MX) playback/recording heads, 2 x Ferrite erasing heads

- Auto Tape Selector
- Auto Reverse / Dolby B-C NR
- Counter: Mode/Reset
- Reverse Mode
- Timer
- Relay
- Random
- Scan
- Rec Level

Pioneer CT-WM77R

Tape Decks - Gold Audio Tape Decks - Gold Audio

Tape Decks - Gold Audio

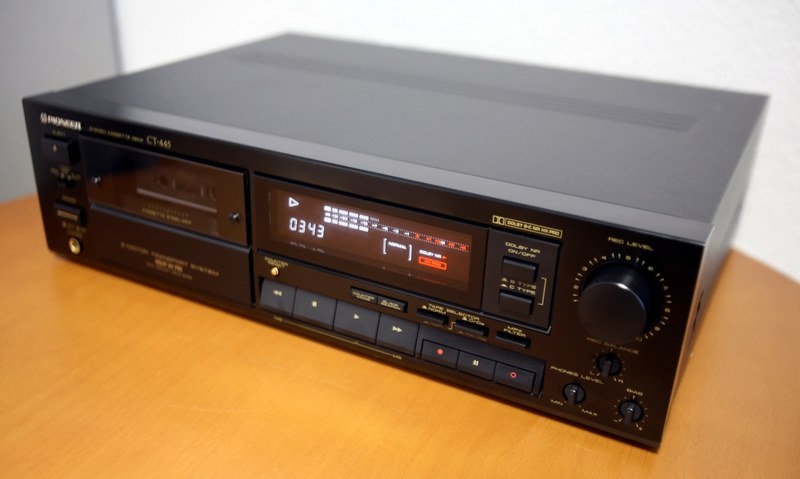

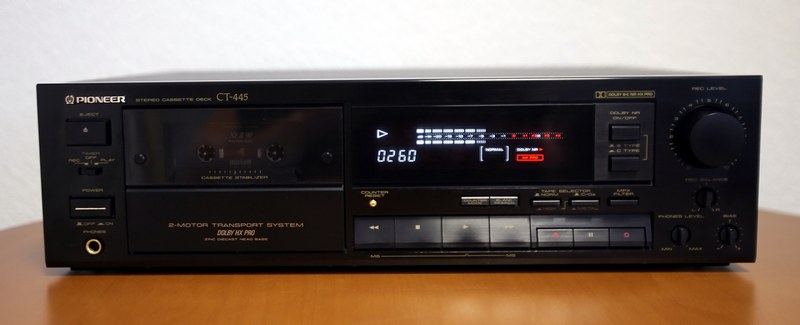

Pioneer CT-445
(1989-1990)

CT-445

Wow and Flutter: <0,055%
Frequency: metal: 25 - 19.000 Hz
chrome: 25 -19.000 Hz
normal: 25 - 17.000 Hz

Motors: 2
Heads: 2

- BIAS Calibration control manual
- Dolby HX Pro
- Dolby B/C
- MPX Filter

Dimensions: 430 x 130 x 310 mm.
4,6 kg.

CT-445

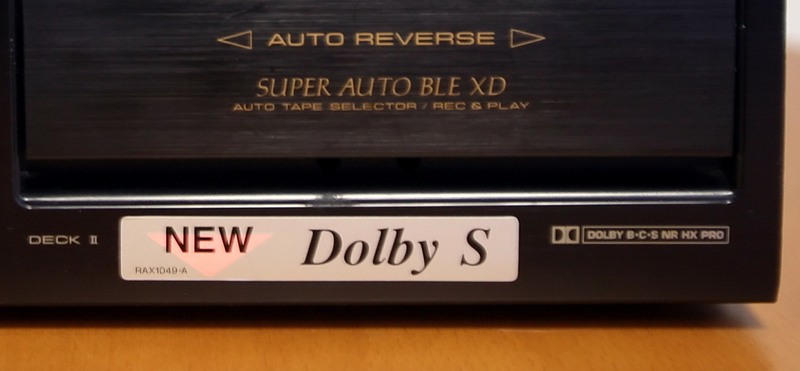

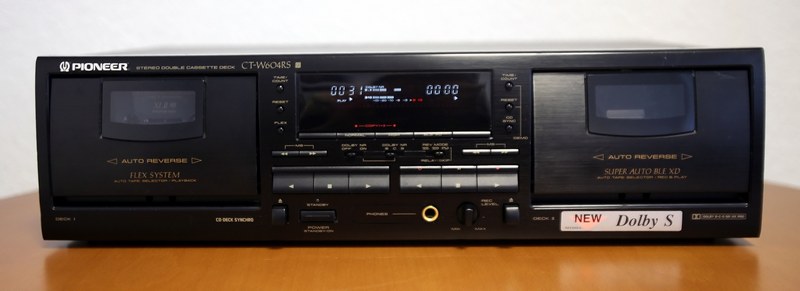

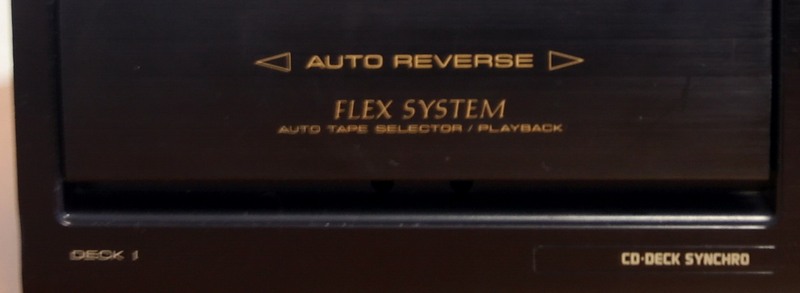

Pioneer CT-W604RS
(1991-1993)

CT-W604

Frequency: metal: 20 - 21.000 Hz
chrome: 25 -19.000 Hz
normal: 25 - 19.000 Hz

Motors: 2 x 2
Heads: 1 + 2

- FLEX system
- Dolby HX Pro
- Dolby B/C
- Dolby S
- MPX Filter
- Autoreverse pronoun decks
- Super Auto BLE XD

Dimensions: 430 x 130 x 290 mm.
4 kg.

Tape Decks - Gold AudioTape Decks - Gold Audio
